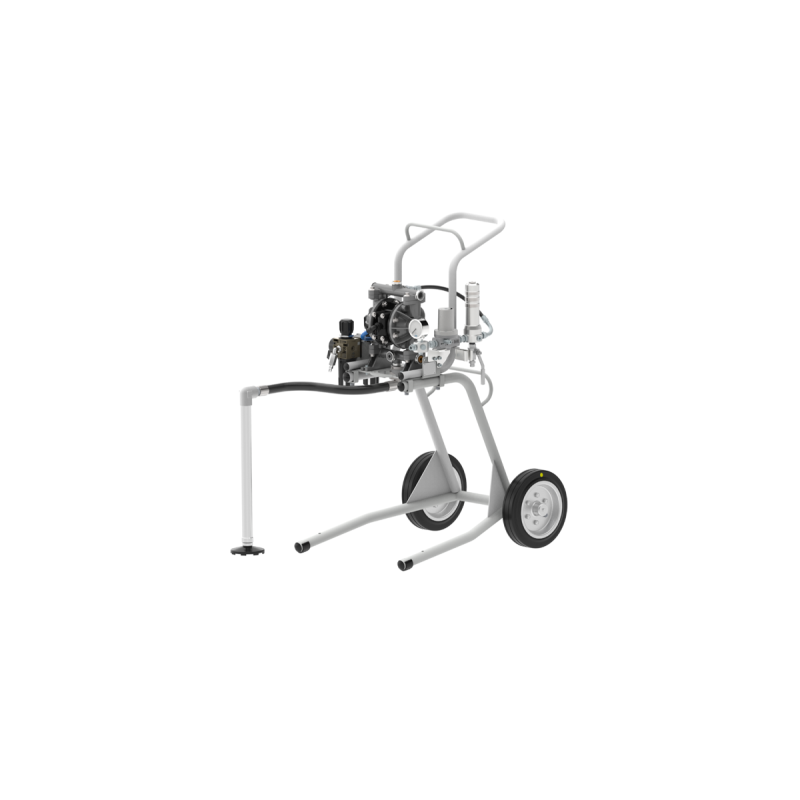

EcoPump AD Package – Professional Low-Pressure Material Supply System

The EcoPump AD Package is a fully integrated and highly reliable paint supply system by Dürr, specifically engineered for industrial coating processes that require consistent material flow, ATEX safety compliance, and uninterrupted long-duration operation.

This pneumatic low-pressure diaphragm pump operates exclusively with compressed air and contains no electrical components, making it completely suitable for hazardous ATEX zones (Zone 1 & 2).

Design & Functionality

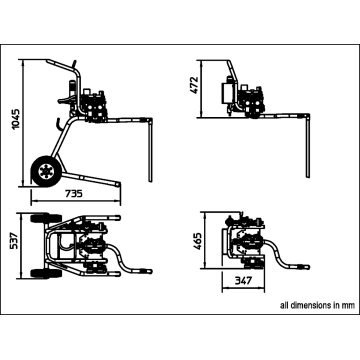

The system is modular and can be configured with various mounting options—transport trolley, mobile stand, or wall mount.

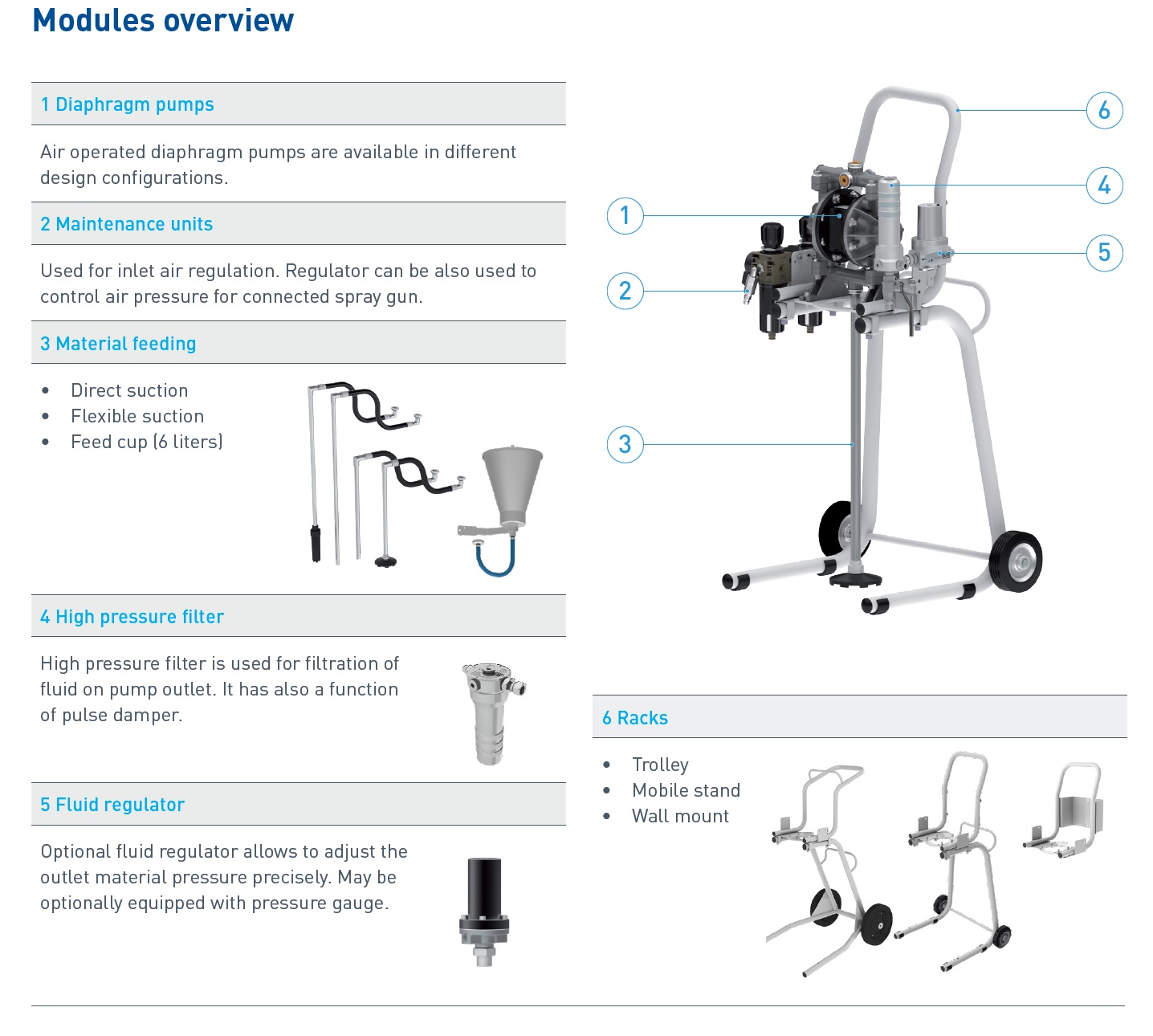

It consists of:

• EcoPump AD diaphragm pump

• Air maintenance unit with filters and regulators

• Material filter with depressurization ball valve

• EcoFlow LPF material pressure regulator

• Distributor block (up to 3 spray guns)

• Suction module (lance or 5L feed cup)

The internal flow path is fully protected by high-performance filters to ensure clean material delivery without contamination.
The pump provides smooth, pulse-reduced operation, delivering a constant material flow for a uniform and high-quality finish.

Key Features & Benefits

1. Suitable for all common paint materials

Compatible with:

• Flammable materials (group IIA)

• Non-flammable materials

• Primers, topcoats, varnishes, 1K & 2K coatings

• Materials up to 200 mPas

2. Full ATEX compliance

ATEX marking: II 2G Ex h IIA T4 Gb X

This guarantees safe operation in hazardous and explosive environments.
The system is fully conductive and properly grounded.

3. Easy cleaning & maintenance

• Quick depressurization with integrated ball valve

• Easy access to all filters and regulators

• Simple flushing and rinsing procedures

• Durable construction (stainless steel, nickel-plated components)

4. Stable output & low air consumption

Operating at only 1–2 bar, the system provides:

• Consistent material flow

• Low noise level (<73 dB)

• Reduced air consumption

• Long service life

5. Flexible spray gun connection

Using the distributor block you can connect:

• up to 3 spray guns simultaneously
  or

• spray gun + pressure gauges + recirculation return

Typical Applications

• Industrial metal, wood, and plastic coating

• Small to medium production lines

• Workflows with frequent color changes

• Integration with manual guns such as EcoGun 246, 249, 910S

• Operation in hazardous or ATEX-classified areas

Technical Summary

• Type: Pneumatic diaphragm pump

• Operating temperature: 10–50°C

• Maximum media temperature: 50°C (43°C for hand-held spray guns)

• Noise level: <73 dB

• Compressed air quality: ISO 8573-1:2010 class 1:4:1

• Operating pressure range: 1–2 bar
