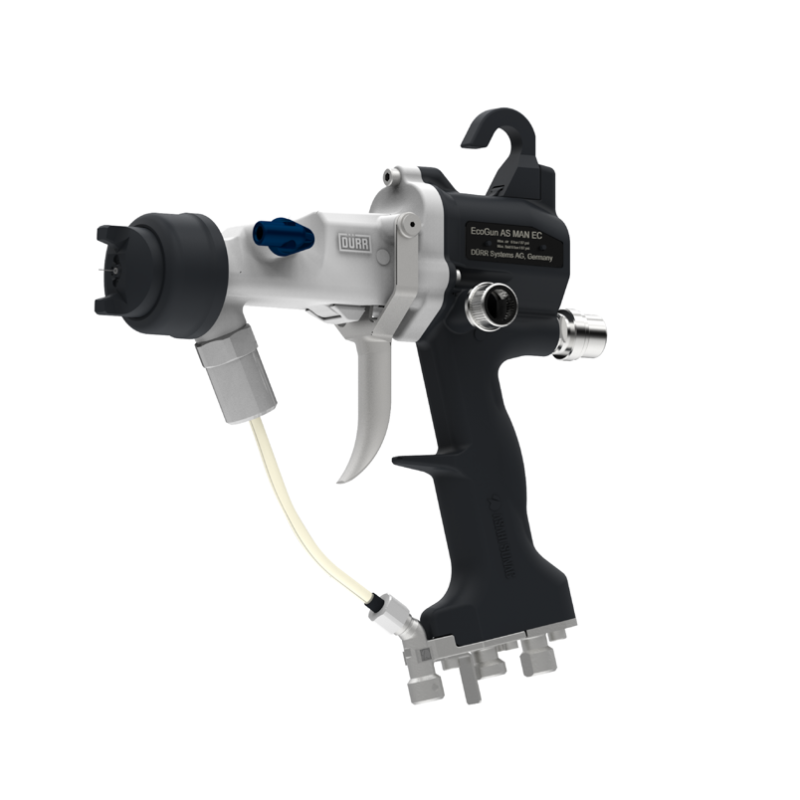

EcoGun AS MAN EC – Manual Electrostatic Spray Gun with External Charging

The EcoGun AS MAN EC by Dürr is a professional electrostatic manual spray gun developed for precision coating processes using non-flammable paints. The gun uses a dedicated high-voltage controller (EcoHT 80) to externally charge the paint particles, significantly improving wrap-around and transfer efficiency compared to standard air-spray technologies. Because of its robust construction, ergonomic design, and CSA Class I Div 1 certification, the EcoGun AS MAN EC is ideal for industrial production environments with strict safety and quality demands.

Design & Operating Principle

The gun is intended exclusively for hand-guided electrostatic coating within a properly ventilated spray booth.
Electrostatic charging takes place externally through a cable connection from the EcoHT 80 controller. Compressed air supports atomization, while the gun’s air cap, nozzle, and flow-control system ensure precise spray characteristics.

Key factors affecting the spray pattern include:

• Air cap alignment

• Material quantity

• Spray width adjustment

These are all fine-tuned directly on the gun for optimal results.

Key Features & Benefits

⭐ 1. External Electrostatic Charging

• 30 kV DC maximum output voltage

• 80 µA maximum current

• Stable charging with clear visual feedback via HV indicator on the gun

• Reduced paint consumption due to improved transfer efficiency

⭐ 2. Superior Finish Quality

• Three air caps available (HN400, HN600, HN800) for different flow rates and widths

• Smooth, uniform atomization

• Fine spray-width control and adjustable material flow

⭐ 3. Advanced Safety for Hazardous Environments

The gun is approved for:

• CSA Class I, Division 1, Group D

• Operation in industrial environments with non-flammable coating materials

Grounding requirements ensure safe dissipation of electrostatic energy:

• Grounded gun

• Grounded operator, floor, material supply, and workpiece

⭐ 4. Lightweight, Ergonomic & Durable

• Weight only 520 g

• Comfortable handle for long working cycles

• Stainless-steel wetted parts (resistant to coatings and detergents)

• Robust trigger mechanism with long service intervals

⭐ 5. Easy Cleaning & Maintenance

• Nozzle, air cap, needle and seals can be removed quickly

• Comprehensive service procedures described in the manual

• Compatible with Dürr maintenance kits and cleaning accessories

Typical Applications

• Plastic parts finishing

• General industrial painting

• Automotive interior/exterior components

• Wood coating (using non-flammable paints)

• Metal finishing lines with electrostatic stations

Technical Highlights

• Max air pressure: 6 bar (0.6 MPa)

• Max material pressure: 6 bar

• Voltage: up to 30 kV DC

• Current: up to 80 µA

• Weight: 520 g

• Material connection: G 3/8"

• Air connection: G 1/4"

• Operating temp: 0–40°C

• Humidity: 40–80%
